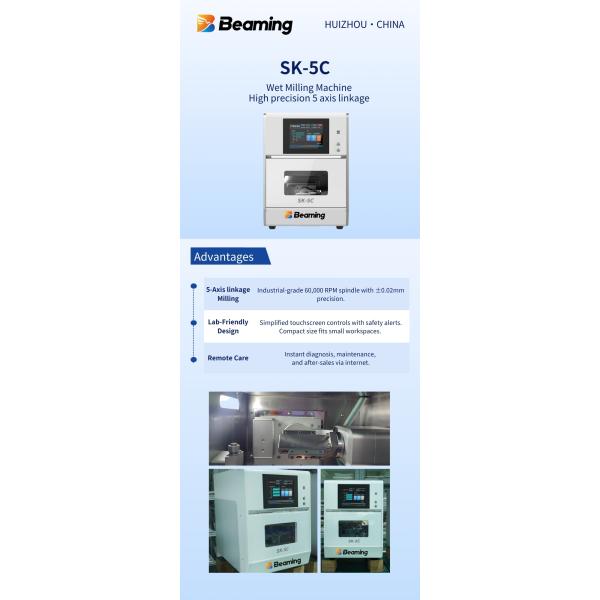

SK-5C Wet 5-Axis Dental Mill: Automatic Tool Change modern dental lab full crowns implant upper crowns
1.Product Introduction
Designed for efficiency and precision in the modern dental lab, the SK-5C is a compact 5-axis dental milling center. It combines industrial-grade performance, including a powerful 60,000 RPM spindle and robust full servo drives, with user-centric operation. This machine is built to transform digital designs into accurate physical dental prosthetics reliably and consistently, serving as a vital production hub.
2.Applications
This versatile mill excels at creating essential restorative components directly from CAD data. Primary applications encompass the fabrication of durable full crowns, precise inner crown frameworks, aesthetic veneers for smile enhancement, accurately fitting inlays, and customized abutments for dental implants. Its material compatibility is focused on dental-specific ceramics like zirconia and glass ceramics, ideal for long-lasting results.
3.Advantages
The SK-5C offers distinct advantages in geometric capability and workflow integration. Simultaneous 5-axis motion (±360° A-axis, ±25° B-axis) eliminates the need for multiple setups, reducing potential errors and handling intricate shapes effortlessly. The high-torque spindle ensures efficient material removal and excellent surface finishes. Its intuitive touchscreen interface with safety prompts simplifies complex operations, while the compact design minimizes space requirements.
4.Technical Parameters
| Parameter | Specification |
| Spindle Speed | 0 - 60,000 RPM |
| Milling Accuracy | ±0.02mm |
| Rotation Axis Angle | A: ±360°, B: ±25° |
| Drive System | Full Servo Drive |
| Processing Mode | 5-Axis Simultaneous |
| Store Burs | 6 Burs |
5.Features
Enhancing productivity, the integrated auto-loading tool magazine holds 6 burs, enabling continuous milling of complex geometries. Flexibility is further increased by supporting both dry and wet milling methodologies through specific holder configurations, allowing tailored approaches for different materials or batch production needs (e.g., milling multiple units simultaneously).
